Log Splitter Pump Kit,16 GPM Hydraulic Wood Splitter Pump 2 Stage Wood Splitter Pump Log Splitter Kit with 25 GPM Auto Control Detent Valve 1/2" for L
Specifications
Shaft: 1/2 in.
Inlet: 1 in.
Outlet: 1/2 NPT min 8 HP engine
Maximum PSI Level 1: 16 GPM@650 PSI
Maximum PSI for second stage: 3.5 GPM@2500 PSI
Bolt circle size: 2.83 inches 4 holes spaced 2 inches apart

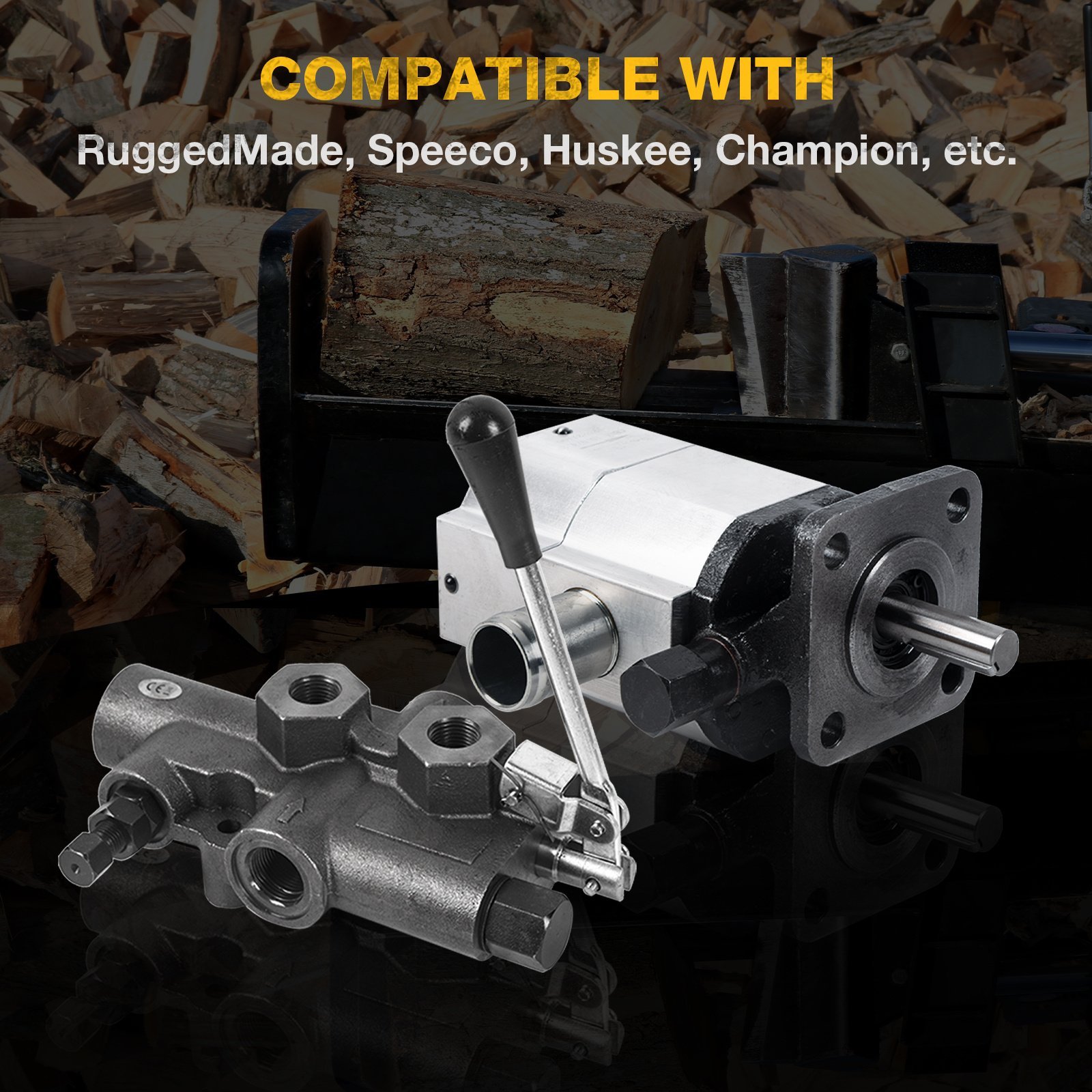

Compatible with: RuggedMade, Speeco, Huskee, Champion
Note: Suction side filter must not be smaller than 150 microns
Maximum Operating Temperature: 180°F
Safety Valve Setting: 2250 PSI
Braking Pressure: 1400 PSI
Working port: 1/2 NPT
Input/Output Ports: 3/4 NPT
Weight: 8.64kg/19.05Ib"
Details:

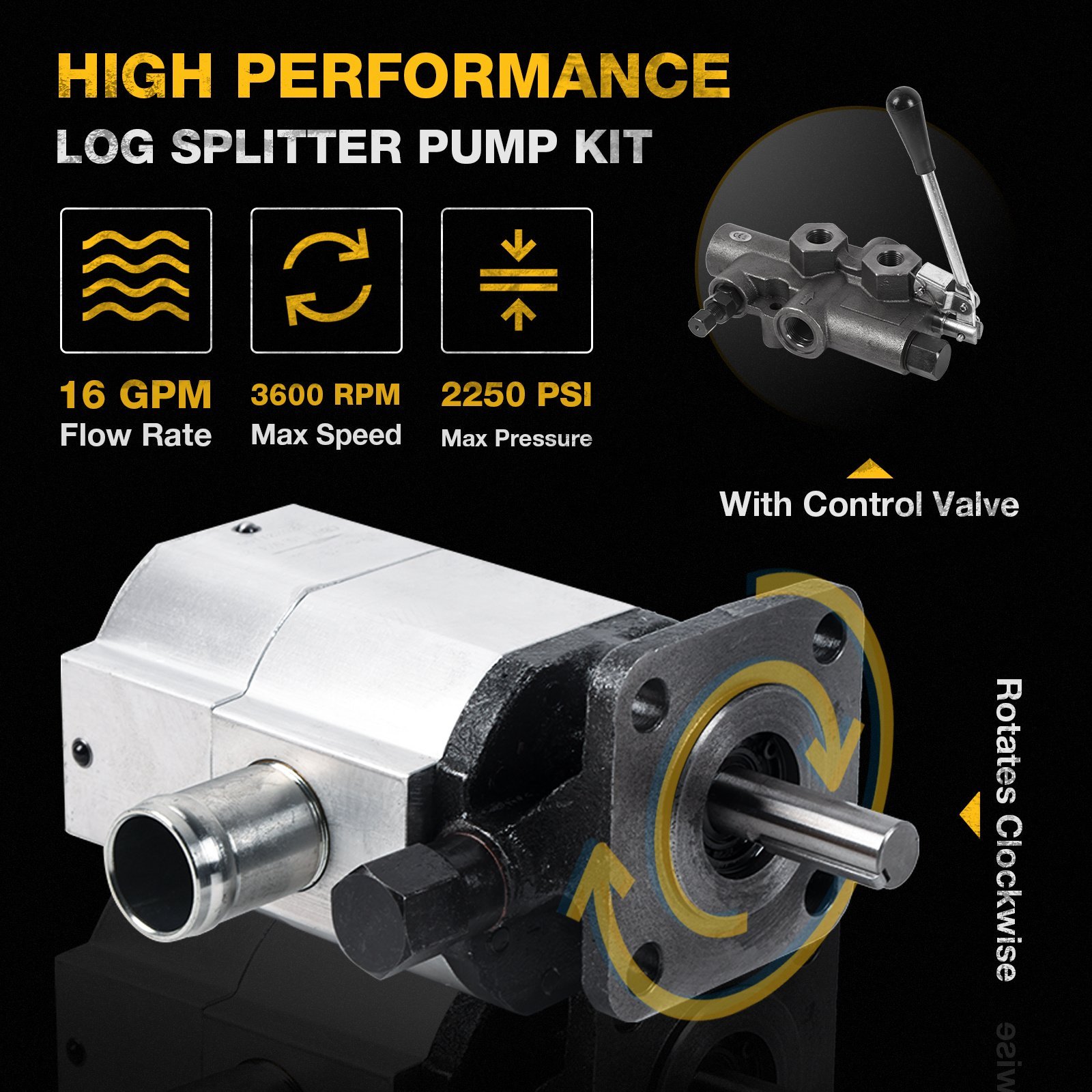

[16 GPM Hydraulic Pump Kit]This hydraulic pump is equipped with a 25 GPM automatic control stop valve. It has a maximum speed of 3600 RPM, a valve setting of 2500PSI, and a high flow rate of 16GPM. It will bring powerful performance to your log splitter. Get ready to start cutting the log in half, in half the time.

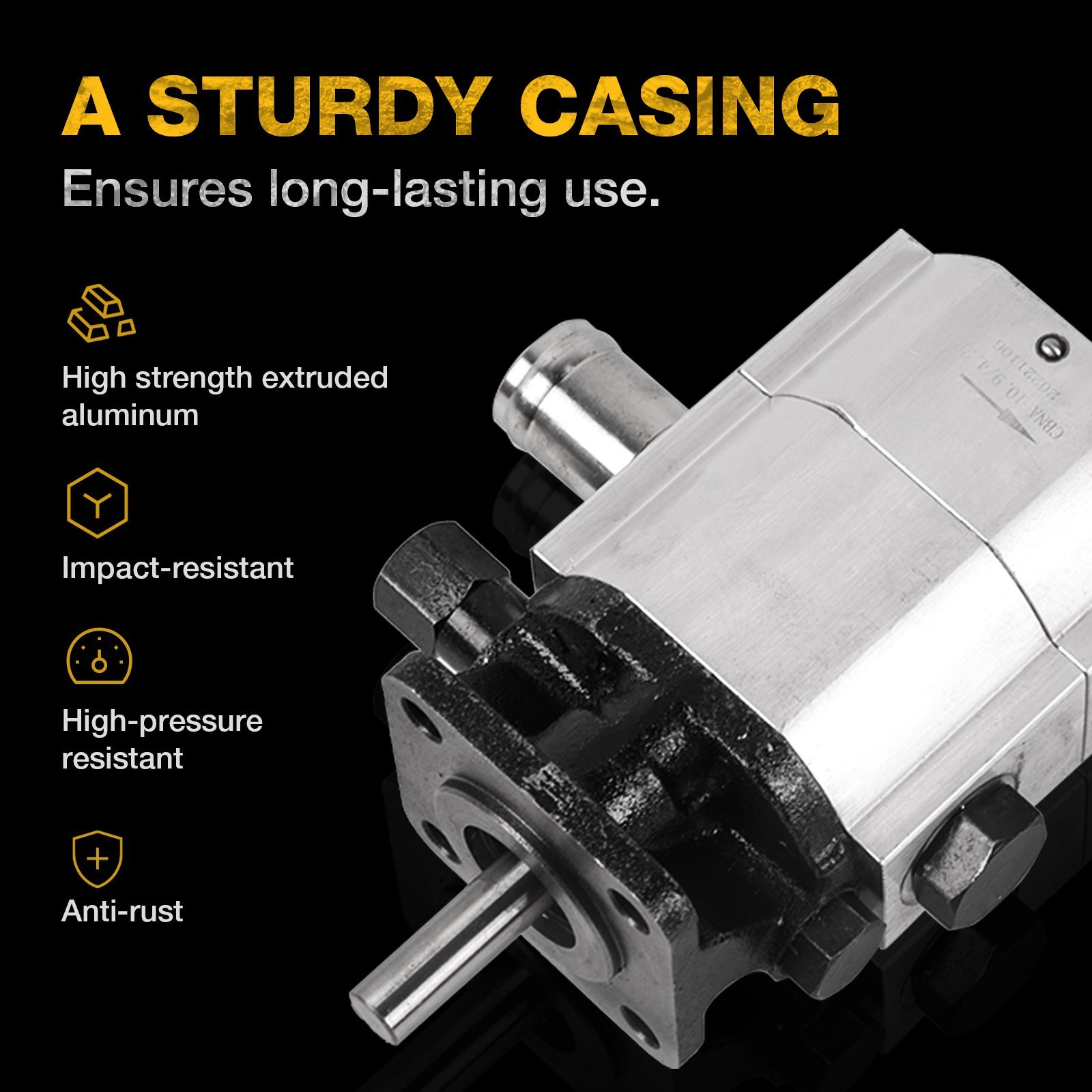

[High Quality Material]Our 2-Stage Log Splitter Hydraulic Pump Kit is made of high-strength extruded aluminum that resists rust and high pressure. The two-stage gear pump provides unmatched power to your log splitter and is more efficient than ever. Easy to clean, durable and low maintenance costs.

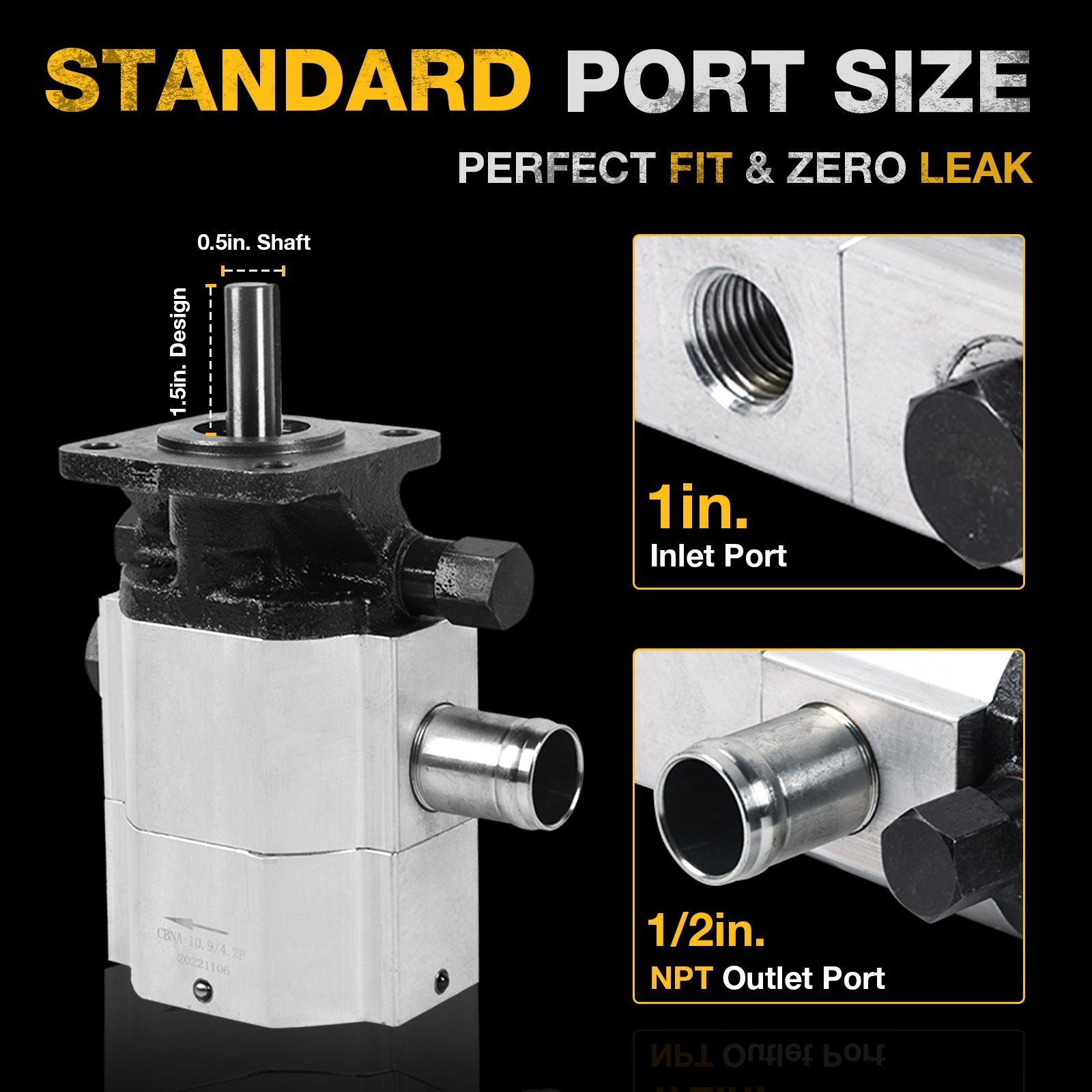

[Specification]1" Inlet & 1/2" NPT Outlet,Our log splitter pump is equipped with a standard 1/2" NPT outlet port ( for Minimum 8 HP engine) and 1" barb on the inlet port. It also has a 1/2" diameter shaft , allowing it to rotate clockwise.

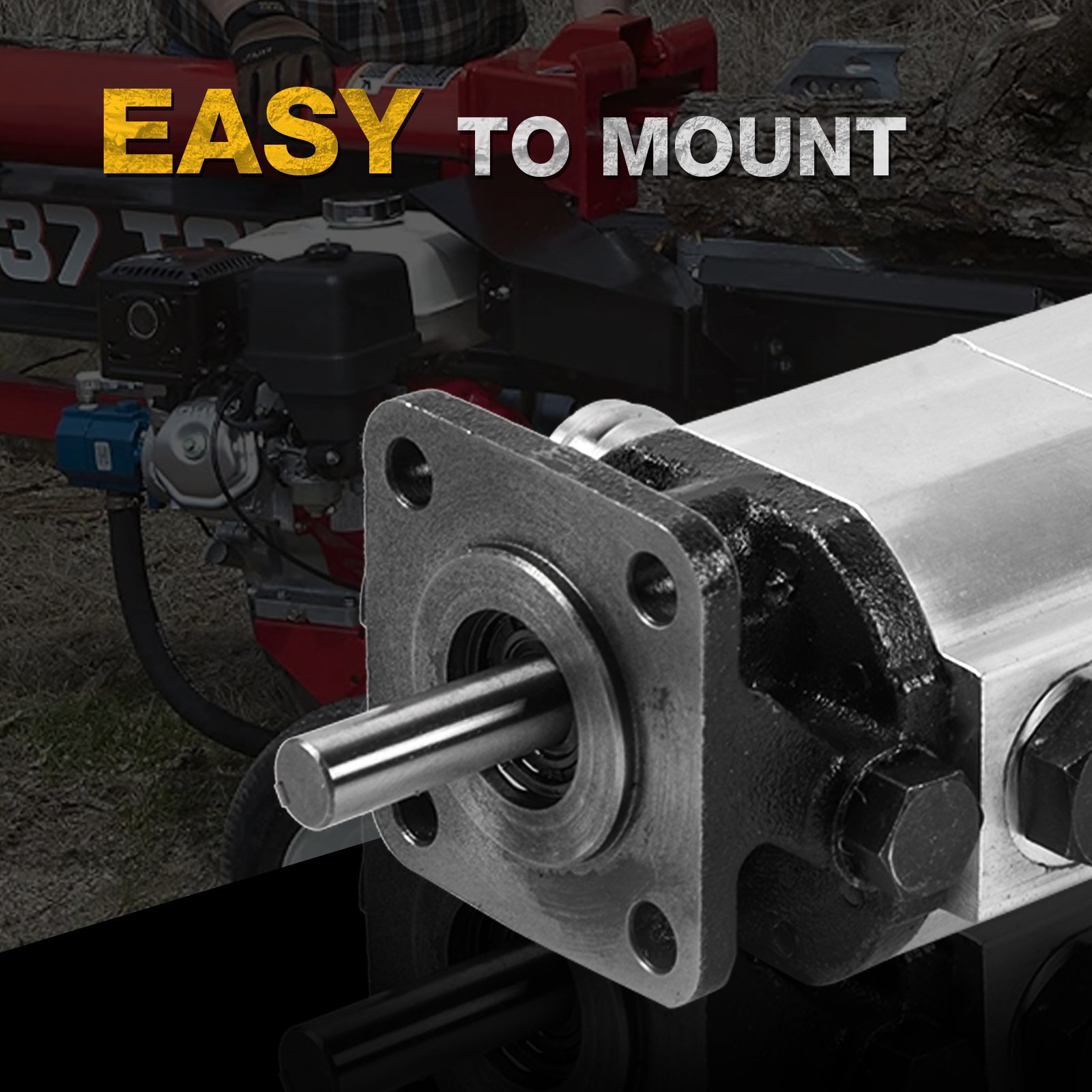

[Easy To Use]Hydraulic pump equipped with 1/2" pump shaft, log splitter shaft motor. greatly reduces difficult problems when changing and operating the product.
[Multifunction]Hydraulic pumps for compatible truck tailgate lifts scissor lifts dump trailer lifts truck snowplows, aerial work platforms, road signs, material handling, wheelchair lifts.

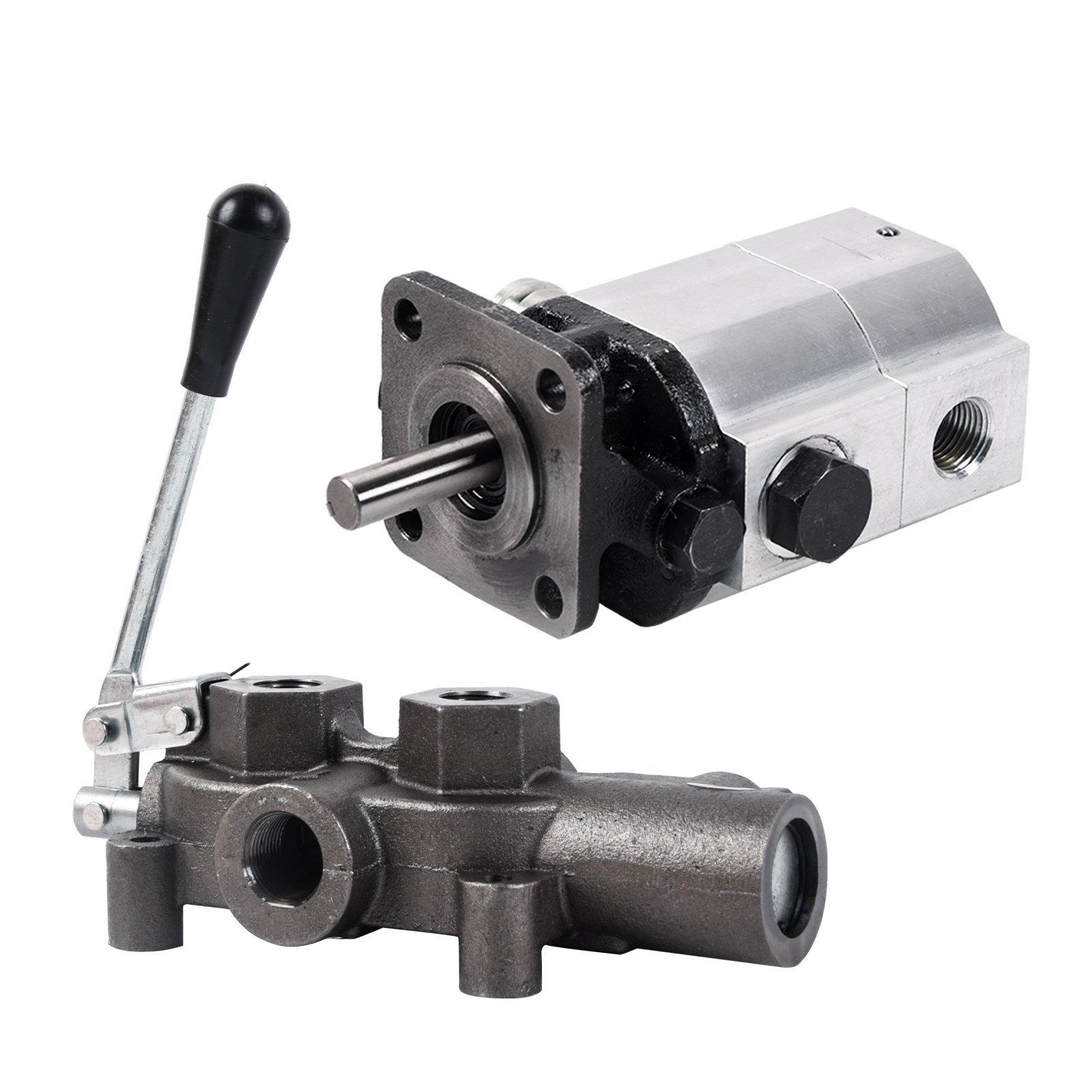

Package List:
1 x set of 16 GPM 2-Stage Hydraulic Pump
1 x set of 25 GPM Auto Control Valve
